Time series are very frequently plotted via line charts. Time series are used in statistics, signal processing, pattern recognition, econometrics, mathematical finance, weather forecasting, earthquake prediction, electroencephalography, control engineering, astronomy, communications engineering, and largely in any domain of applied science and engineering which involves temporal measurements.[4]
In the following, we will elaborate more on some of the simpler time-series methods and go over some numerical examples.
Naïve Method
The simplest forecasting method is the naïve method. In this case, the forecast for the next period is set at the actual demand for the previous period. This method of forecasting may often be used as a benchmark in order to evaluate and compare other forecast methods.
Simple Moving Average
In this method, we take the average of the last “n” periods and use that as the forecast for the next period. The value of “n” can be defined by the management in order to achieve a more accurate forecast. For example, a manager may decide to use the demand values from the last four periods (i.e., n = 4) to calculate the 4-period moving average forecast for the next period.
Some relevant notation:
Dt = Actual demand observed in period t
Ft = Forecast for period t
Using the following table, calculate the forecast for period 5 based on a 3-period moving average.
Period |
Actual Demand |
1 |
42 |
2 |
37 |
3 |
34 |
4 |
40 |
Solution
Forecast for period 5 = F5 = (D4 + D3 + D2) / 3 = (40 + 34 + 37) / 3 = 111 / 3 = 37
Here is a video explaining simple moving averages.
https://www.linkedin.com/learning/forecasting-using-financial-statements/simple-moving-average
Weighted Moving Average
This method is the same as the simple moving average with the addition of a weight for each one of the last “n” periods. In practice, these weights need to be determined in a way to produce the most accurate forecast. Let’s have a look at the same example, but this time, with weights:
Period |
Actual Demand |
Weight |
---|---|---|
1 |
42 |
|
2 |
37 |
0.2 |
3 |
34 |
0.3 |
4 |
40 |
0.5 |
Solution
Forecast for period 5 = F5 = (0.5 x D4 + 0.3 x D3 + 0.2 x D2) = (0.5 x 40+ 0.3 x 34 + 0.2 x 37) = 37.6
Note that if the sum of all the weights were not equal to 1, this number above had to be divided by the sum of all the weights to get the correct weighted moving average.
Here is a video explaining weighted moving averages.
https://www.linkedin.com/learning/forecasting-using-financial-statements/weighted-moving-average
Exponential Smoothing
This method uses a combination of the last actual demand and the last forecast to produce the forecast for the next period. There are a number of advantages to using this method. It can often result in a more accurate forecast. It is an easy method that enables forecasts to quickly react to new trends or changes. A benefit to exponential smoothing is that it does not require a large amount of historical data. Exponential smoothing requires the use of a smoothing coefficient called Alpha (α). The Alpha that is chosen will determines how quickly the forecast responds to changes in demand. It is also referred to as the Smoothing Factor.
There are two versions of the same formula for calculating the exponential smoothing.
Here is version #1:
Ft = (1 – α) Ft-1 + α D t-1
Note that α is a coefficient between 0 and 1
For this method to work, we need to have the forecast for the previous period. This forecast is assumed to be obtained using the same exponential smoothing method. If there were no previous period forecast for any of the past periods, we will need to initiate this method of forecasting by making some assumptions. This is explained in the next example.
Period |
Actual Demand |
Forecast |
1 |
42 |
|
2 |
37 |
|
3 |
34 |
|
4 |
40 |
|
5 |
Solution
In this example, period 5 is our next period for which we are looking for a forecast. In order to have that, we will need the forecast for the last period (i.e., period 4). But there is no forecast given for period 4. Thus, we will need to calculate the forecast for period 4 first. However, a similar issue exists for period 4, since we do not have the forecast for period 3. So, we need to go back for one more period and calculate the forecast for period 3. As you see, this will take us all the way back to period 1. Because there is no period before period 1, we will need to make some assumption for the forecast of period 1. One common assumption is to use the same demand of period 1 for its forecast. This will give us a forecast to start, and then, we can calculate the forecast for period 2 from there. Let’s see how the calculations work out:
If α = 0.3 (assume it is given here, but in practice, this value needs to be selected properly to produce the most accurate forecast)
Assume F1 = D1, which is equal to 42.
Then, calculate F2 = (1 – α) F1+ α D1 = (1 – 0.3) x 42 + 0.3 x 42 = 42
Next, calculate F3 = (1 – α) F2+ α D2 = (1 – 0.3) x 42 + 0.3 x 37 = 40.5
And similarly, F4 = (1 – α) F3+ α D3 = (1 – 0.3) x 40.5 + 0.3 x 34 = 38.55
And finally, F5 = (1 – α) F4+ α D4 = (1 – 0.3) x 38.55 + 0.3 x 40 = 38.985
Accessible format for Figure \(\PageIndex{2}\)

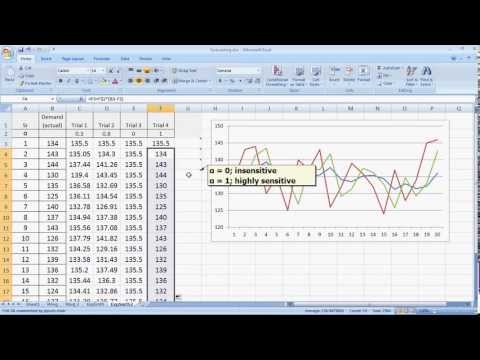

Here is a video explaining exponential smoothing using EXCEL.
https://www.linkedin.com/learning/search?keywords=exponential%20smoothing&u=2169170
Here is version #2:
Ft = Ft-1 + α(Dt-1 – Ft-1)
Assume you are given an alpha of 0.3, Ft-1 = 55
Solution
Accessible format for Figure \(\PageIndex{3}\)
Season |
Previous Sales |
Average Sales |
Seasonal Index |
---|---|---|---|
Winter |
390 |
500 |
390 / 500 = .78 |
Spring |
460 |
500 |
460 / 500 = .92 |
Summer |
600 |
500 |
600 / 500 = 1.2 |
Fall |
550 |
500 |
550 / 500 = 1.1 |
Total |
2000 |
Using these calculated indices, we can forecast the demand for next year based on the expected annual demand for the next year. Let’s say a firm has estimated that next year annual demand will be 2500 units.
Solution
Season |
Anticipated annual demand |
Avg. Sales / Season |
Seasonal Factor |
New Forecast |
---|---|---|---|---|
Winter |
625 |
0.78 |
.78 x 625 = 487.5 |
|
Spring |
625 |
0.92 |
.92 x 625 = 575 |
|
Summer |
625 |
1.2 |
1.2 x 625 = 750 |
|
Fall |
625 |
1.1 |
1.1 x 625 = 687.5 |
|
2500 |
